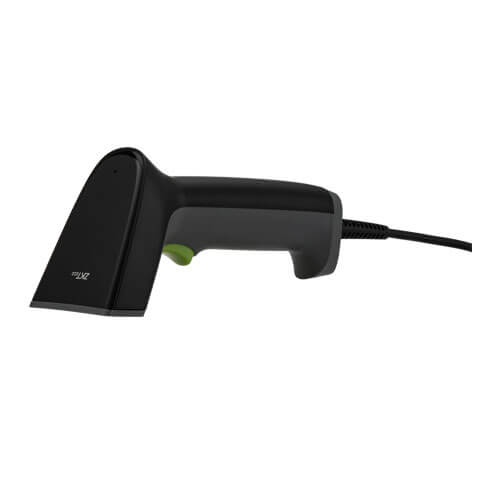

ZKTeco ZKB201S in UAE

Fast 1D/2D barcode scanning
Reads damaged and mobile codes
Plug-and-play USB, durable design

Source the ZKTeco ZKB201S 2D Image Barcode Scanner directly from Dubai to streamline your retail, warehouse, and logistics operations. This high-performance scanner delivers fast and accurate reading of 1D, 2D, and QR codes on paper or mobile screens, even if damaged or high-density. Equipped with a 640x480 image sensor, white LED illumination, and plug-and-play USB connectivity, it is perfect for supermarkets, warehouses, and express delivery. Reliable shipping is available from the UAE to customers across MENA, Africa, and worldwide. Purchase this durable and efficient scanning solution today.

Request a Quote Download Datasheet

Model Name: ZKTeco ZKB201S

Dimensions (L × W × H): 167.3 × 70.5 × 81.5 mm

Weight: 122g

Voltage & Current: 5 VDC, Operating: 180mA, Standby: 60mA

Color: Black

Host Interface: Standard USB (Optional RS232)

User Indicators: Decode LED, Adjustable Beeper

Scan Mode: Manual Reading

Light Source: 650nm True Red LED Aiming Pattern

Illumination: White LED

Scan Speed: 10 cm/s

Field of View: Horizontal 41°, Vertical 31°

Image Sensor: 640 × 480 pixels

Minimum Print Contrast: 25%

Roll Tolerance: 0° to 360°

Pitch Tolerance: ±60°

Skew Tolerance: ±55°

Minimum Element Resolution: Code 39: 4mil, Code 128: 4mil, Data Matrix: 6mil, QR Code: 6.7mil

Decode Capability: 1D: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7); 2D: QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, MaxiCode, Aztec, HanXin Code

Operating Temperature: -20°C to 50°C

Storage Temperature: -40°C to 70°C

Humidity: 5% - 95% non-condensing

Electrostatic Discharge (ESD): ±2KV Direct, ±4KV Air

Ambient Light Immunity: Up to 10,000 Lux

Decode Ranges: Code 39 (4mil: 4-10cm, 5mil: 4-13cm, 13mil: 4-25cm, 20mil: 6-30cm); EAN-13 / UPC-A 13mil: 3-25cm; QR Code 20mil: 5-20cm; PDF417 13mil: 5-20cm

ZKB201S High-Speed 2D Image Scanner for 1D & QR Codes on Screens and Paper

Reliable Decoding of Damaged or Dirty High-Density Barcodes via 640x480 Sensor

ZKTeco ZKB201S Plug-and-Play USB Scanner Shipped from Dubai to MENA & Africa]

Applications & Use Cases

Use Case 1

ZKB201S for Supermarket POS & Mobile Payments

The ZKB201S accelerates retail checkouts in Dubai and MENA markets by instantly reading standard commodity barcodes and 2D mobile wallet QR codes on phone screens, even under low white LED illumination.

Use Case 2

Warehouse Logistics & Express Inventory Tracking

Optimized for supply chains in Africa and the UAE, the ZKB201S scanner uses its 640*480 sensor to accurately decode dirty, damaged, or high-density shipping labels for efficient stock management.

Use Case 3

Pharmacy Verification & O2O E-Ticketing

The ZKB201S offers precise reading of small Data Matrix codes and electronic coupons, making it the ideal plug-and-play solution for healthcare tracking and event access control worldwide.

Frequently Asked Questions

Yes, the ZKB201S is a high-performance 2D Image Barcode Scanner specifically designed to read common 1D and 2D barcodes, including QR codes and Data Matrix, directly from mobile phone screens and paper labels.

Absolutely. With its advanced 640*480 pixel image sensor and white LED illumination, the ZKB201S can accurately decode high-density, dirty, or damaged barcodes, making it ideal for logistics and warehouse environments.

The scanner features a Plug and Play Standard USB interface for easy integration with POS systems and computers. An RS232 interface is also available as an option for specific industrial requirements.

Yes, the scanner is built for durability with an operating temperature range of -20°C to 50°C, ensuring reliable performance in the diverse climates of the UAE, Africa, and other MENA regions.

Yes, Endless Data provides comprehensive after-sales support. You can contact our technical team for assistance and warranty services, ensuring customers in the UAE, Middle East, and Africa have a reliable partner.

The device offers a fast scan speed of 10 cm/s with a manual reading mode. It can read a QR Code (20mil) from 5cm to 20cm away and Code 39 (20mil) from 6cm to 30cm, covering standard retail needs.

It supports a wide range of symbologies. 1D: EAN-13, UPC-A, Code 128, Code 39. 2D: QR Code, PDF417, Data Matrix, Aztec, and HanXin Code, suitable for supermarkets and pharmacies.

Please contact us directly or request a quote through our website. Our Endless Data sales team manages inquiries and arranges shipping for customers in the UAE, Saudi Arabia, Africa, and worldwide.
