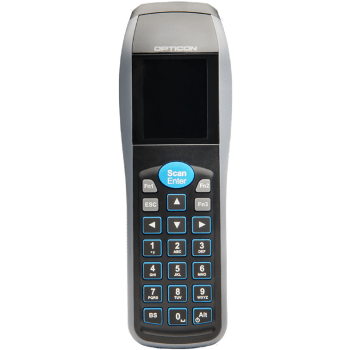

Opticon OPH3001
- Ergonomic design with curved scan head and soft grip
- Bright display for easy reading
- Clear scanning feedback with LED and buzzer
- Lightweight
The OPH-3001 is designed to make scanning a comfortable experience, especially if scanning is required often. The ergonomic design includes a soft grip, a curved scan head for relieve stress from the wrists and a bright display for better readability. But this scanner is still a mobile scanning device, capable of running complex applications.
OPERATION
CPU: RX62N 32-bit MCU O/S: Proprietary SOFTWARE: Programmable in
C-language. Software development kit with compiler free downloadable RTC:
Supports year, month, day, hour, minute, second (leap year supported)
MEMORY
FLASHROM: 4 MB SDRAM: 4 MB NAND FLASH: 128 MB
DISPLAY
TYPE: TFT LCD QVGA color display with backlight SIZE: 2 inch, 320 x 240 pixels
FONT SIZE: 6x6 / 6x12 / 8x8 / 8x16 / 12x24 dots
OPERATING INDICATORS
VISUAL: 1 LED (red/green) NON-VISUAL: Buzzer
COMMUNICATION
USB: Mini USB, Ver. 2.0, VCP IRDA: Ver. 1.2, baudrate 1200 bps - 115.2 kbps
POWER
RECHARGEABLE BATTERY: Lithium-Ion 3.7V 1100mAh BACKUP BATTERY:
Lithium (CR2032) OPERATING TIME: Ca. 40 hours (backlight off, 1 scan / 10
sec) CHARGING METHOD: Enclosed USB cable
DURABILITY
TEMPERATURE IN OPERATION: -10 to 50 C / 14 to 122 F TEMPERATURE
IN STORAGE: -20 to 60 ??C / -4 to 140 ??F CHARGING TEMPERATURE: 0 to
40 C (32 to 104 F) HUMIDITY IN OPERATION: 20 - 85% (non-condensing)
HUMIDITY IN STORAGE: 20 - 85% (non-condensing) DROP TEST: 1.5 m / 5 ft
drop onto concrete surface PROTECTION RATE: IP 54
