Opticon L46
- Auto-trigger Laser Barcode Scanner
- High speed moving object scanning
- USB or RS-232 interface

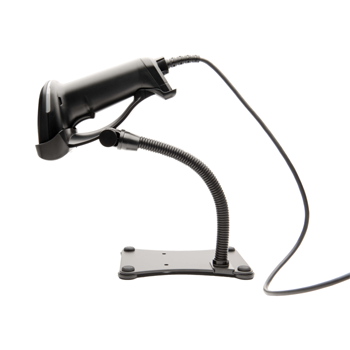

The L-46 is a fast hand scanner that comes with a beautiful stand. The L-46 scans with a speed of 100 scans per second. The cables are interchangeable, making it easy to switch between USB or RS-232 interface. The scanner is delivered with either a 2D CMOS Imager or a 1D laser engine.
OPERATING INDICATORS
CPU: 32-bit AISC, 96 MHz VISUAL: Red laser diode NON-VISUAL: Buzzer,
COMMUNICATION
RS232: D-SUB9 pin (with external power supply) USB: Ver. 2.0, HID/COM,
USB-A connector
POWER
VOLTAGE REQUIREMENT: 5V CURRENT CONSUMPTION: 155mA
DURABILITY
TEMPERATURE IN OPERATION: -5 to 50 ??C / 23 to 122 ??F TEMPERATURE
IN STORAGE: -30 to 60 C / -22 to 140 F HUMIDITY IN OPERATION: 5 -
90% (non-condensing) HUMIDITY IN STORAGE: 5 - 90% (non-condensing)
AMBIENT LIGHT IMMUNITY: Fluorescent 4,000 lx, Direct sun 80,000 lx DROP
TEST: 1.8 m / 6 ft drop onto concrete surface VIBRATION TEST: 10 - 100 Hz
with 2G for 1 hour PROTECTION RATE: IP 42
