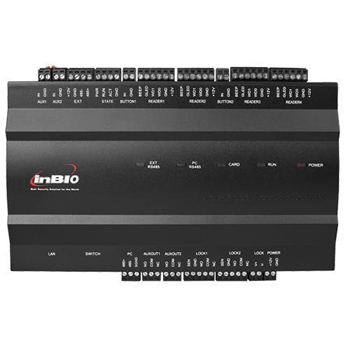

ZKTeco InBio
- \n
- IP-based Biometric Door Access Control Panel \n
- Support up to 3000 fingerprint templates \n
Matching of fingerprints on the panels,??Auxiliary relays can be??functioned as lights, alarms and intrusion detection panels ,Anti-Passback, First-Card Opening, Multi-Card opening, Duress Password Entry, and Auxilary input/output .
Number of Doors Controlled : 1 Door , 2 Door , 4 Door.
\nNumber of Readers Supported : 4(2 RS-485 Reader, 2 26-bit wiegand reader), 8(4 RS-485 Reader, 4 26-bit wiegand reader),12 (8 RS-485 Reader, 4 26-bit wiegand reader) .
\nTypes of Readers Supported: 26-bit Wiegand and RS485 FR Series Reader .
\nNumber of Inputs : 3(exit Device and Door Status, 1 AUX) , 6( 2 Exit Device, 2 Door Status, 2 AUX), 12( 4 Exit Device, 4 Door Status, 4 AUX)
\nNumber of Outputs :2 (1 form C Relay for Lock and One Form C Relay for Aux Output), 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output) ,
\n8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
\nCard holders Capacity : 30,000 ,30,000 ,30,000 .
\nFingerprint Capacity : 3,000 , 3,000 , 3,000 .
\nLog Events Capacity : 100,000 ,100,000 ,100,000 .
\nCommunication : TCP/IP, RS-485 and WiFi optional .
\nPackage Dimension : 350(L)??90(H)??300(W)mm .
\nPackage Weight : 3.6kg , 3.6kg , 3.7kg .
\nCPU : 32 bit 400MHz CPU
\nRAM : 32M .
\nFlash Memory : 128M .
\nPower : 9.6V-14.4V DC
\nOperating Temp : 0-45 ??C .
\nOperating Humidity : 20% t
