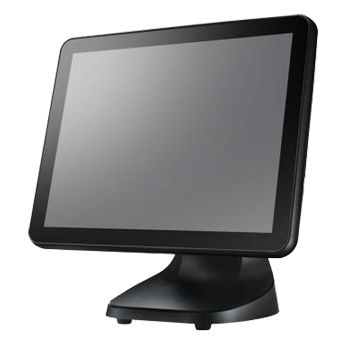

TYSSO TP7715
- Fanless POS Systems that introduces High-Performance
- Noise-Free, and Reliability
Fanless Design with 6th / 7th Generation Intel?? Core Processors,??Aluminum Die-Casting Back Cover For Optimal Thermal Dissipation, Cables And Power Adapter Hidden In The Stand, IP65 / NEMA 4 Front Bezel Compliant.
CPU: Intel 6th Generation Skylake
System Memory:2 x DDR4 SO-DIMM Socket, up to 32GB
Graphic: Intel HD Graphics
OS Support: POS Ready 7 (32/64 bit), Windows 7 (32/64 bit), Windows 8.1 (64 bit), Windows 10 IOT Value (64 bit), Windows 10 IOT High End (64 bit), Linux
Screen Size: 15\" TFT LCD LED backlight, (Ratio 4:3)
Resolution: 1024 x 768
Touch Screen: Ture-Flat Projective Capacitive Touch (10 point) Ture-Flat 5-wire Resistive Touch
Tilting Angle: 15 ~ 85 degree
HDD: 1st x 2.5 SATA III HDD or SSD supported in the Main Panel,2nd x 2.5 SATA III HDD or SSD supported in the base
RAID :N/A RAID 0/1
Serial: 4 x COM (COM1~2 DB9 with RI / +5VDC / +12VDC output by BIOS,
COM3~4 8P8C with RI / +5VDC / +12VDC output by jumper)
Parallel: 1 x DB25 Parallel Port
USB: 4 x USB (Bottom 4 x USB 3.0),Extra I/O choose rather 2 x USB Type A (2 x USB 2.0) or Power USB (1 x 12V/2A and 1 x 24V/3A)
LAN: 2 x RJ45, Giga LAN Support (10 / 100 / 1000 Mbps),- 1 x Intel?? I219 LAN, RJ45 (Lan 1),- 1 x Realtek RTL8111G, RJ45 (Lan 2)
VGA: 1 x reserved (Max Resolution: 1920 x 1080) for 2nd Display
HDMI : 1 x HDMI (horizontal type)
DC Out : 1 x +12VDC DC In: 1 x +12VDC
Cash Drawer: 1 x RJ-11, +12VDC / +24VDC by jumper select
Audio : 1 x Line out
Power Adaptor:+12V/7.5A, 90W External Power Adaptor with Cable Head Lock and Hide in Stand??+12V/12.5A, 150W External Power Adapter (option for Power USB) with Cable Head Lock (Power Adaptor: 100VAC ~ 240VAC, 50/60Hz)
Color: Black / White Weight: 7.1 kg
