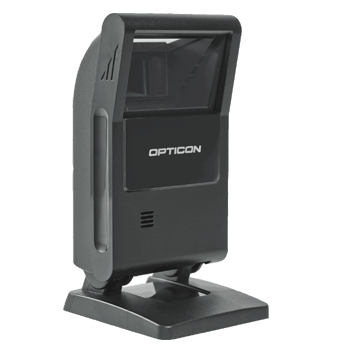

Opticon M10
- Omni-directional scanning
- Rapid performance; 60 fps
- Stylish design
- IP 52
The M-10 is an omni-directional presentation scanner, meaning that all barcodes are scanned no matter how you hold it in front of the scanner; upside down, downside up, its no problem for this presentation scanner. Offering our high performance 2D CMOS Imager along with a well thought out ergonomic design, which allows the scanner being used in the hand or traditionally on a desk with its adjustable stand.
Operating indicatorsA?
Visual: 2 LEDs (green/blue/orange) Non-visual: Buzzer
Communication
RS232:DB9 PTF connector with external power supply, 300 bps~115200 bps USB:Full-speed 12Mbps (HID/COM) Voltage requirement: 5.7~6.3V
Durability
Temperature in operation: -5 to 45 ??C Temperature in storage: -20 to
60 ??C Humidity in operation: 20 - 85% Humidity in storage: 20 - 90% Ambient
light immunity: Fluorescent 10,000 lx or less, sunlight 100.000 lx or less
Antistatic electricity: 15kV (non-destructive) Drop test: 1.5 m / 5 ft drop
onto concrete surface Vibration test: 10 - 100 Hz with 2G for 3 hours Protection
rate: IP 52
Physical
Dimensions (w x h x d): 72 x 70 x 139 mm Weight body: Ca. 250 g
