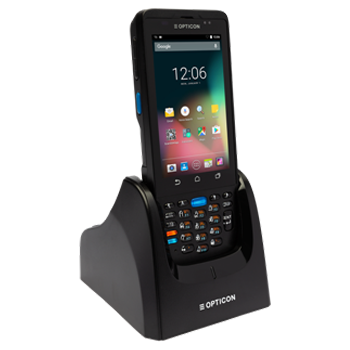

Opticon H29
- Android 6.0.1 with High performance Barcode scanning
- 5 inch full color FHD touch screen
- Protection rate at IP 67
With the rugged H-29, Opticon provides a scanning, analyzing and service solution for industries within every sector such as Logistics, Postal, Healthcare, Retail, Industrial and Transportation among others. For the rugged Android mobile computer a separate bumper can be ordered optionally. As always, Opticon provides a dedicated cradle that can be ordered separately upon your wish. The H-29 comes in two versions, a 4G and WiFi-supported edition.
Operation
CPU : Qualcomm Snapdragon 617 A53 Octa-core O/S : Android 6.0.1
Memory
EMMC : 16GB RAM : LPDDR3 2GB Expansion : MicroSD, Simcard(optional)
Display
Type : FHD, capacitive touch panel,color screen, Gorilla Glass. Size: 5
Communication
Bluetooth : 4.1 LE W-LAN : Wi-Fi, IEEE, 802.11 a/b/g/n/ac/r Telecom : WCDMA, GSM, TDD LTE, FDD TLE NFC : ISO14443-4 (type A & B),ISO15693, Mifare, Felica (ISO/IEC18092) GPS : GPS/GLONASS
Power
Main battery : Lithium-Ion 3.7v 2960mAh (Standard), Lithium-Ion 3.7v
5920mAh (optional) Backup battery : Rechargeable RTC battery, battery swap
Operating time (WWAN on, LCD on) :Ca. 9 hours (standard), Ca. 18 hours(extended) Charging technology : Qualcomm Quickcharge 2.0(USB only)
Durability
Temperature in operation : -20 to 50 A°C / -4 to 122 A°F Temperature in storage : -30 to 60 A°C /-22 to 140 A°F (without battery) Humidity in operation : 10% to 90%
(non-condensing) Humidity in storage : 10% to 90% (noncondensing) Drop test : 1.5m / 5 ft drop onto concrete surface, MIL-STD 810G. 1.8m / 6 ft drop onto concrete surface, MILSTD 810G with protective bumper Protection rate : IP 67
