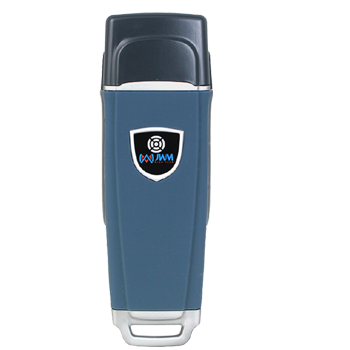

JWM Vanguard5 in UAE

RFID guard tour reader
IP67 Protection Grade.

RFID Guard Tour reader comes Military Material and four color LED combines with vibration. Vanguard 5 chooses high-capacity battery and low power consumption design. That guarantees the super endurance.

Request a Quote Download Datasheet

Dimenstions:Height 144mm, Width 47mm, Thickness 30mm

Weight: 200g

Color: Grey , Green, Yellow

Operating Temperature: -40 ~+85

IP Rate:IP67

Reading Mode:RFID 125 KHz, Reading distance, 3cm -5cm

Communication:USB(CP2102,USB2.0) upload data 15000 pieces per min

Battery:rated voltage: 3.7V, rated capacity: 880Amh

Standby time: 1 Read tags per second, can be used at least 40 hours.2500 readings per day, can be used for 29 days. Five days for low power.

Data Storage:16Mbit flash, 60,000 pieces
