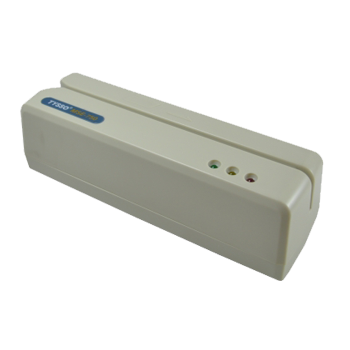

TYSSO Magnatic Card Writer

TYSSO MSE700

  • Magnetic Stripe Card Reader/Writer
  • Loco. and Hico. Encoder (reader/writer)


Tracks 1&2&3, 300~4000oe Coercivity,Hico/loco Configurable, RS-232/USB Two-in-One Connectivity, One Million Passes Media Life, ISO 7811-1/2/3/4/5 &ANSI 4.16 1983 Compliant


Standard :AISO 7811-1/2/3/4/5 &ANSI 4.16 1983 Compliant

Data Format :A5/6/7BPC 210/75BPI on Any Track

Magnetic Track :ATracks 1&2&3

Interface :ARJ-45 (with converting cable to USB or RS-232)

Coercivity :A300~2700 Oersted (read) , 300~2700 Oersted (write)

Media Speed :A5~50IPS (Read) / 5~30IPS (Write)

Media Life :A1,000,000 passes for both read and write heads

Low Amplitude Reading :A0% (210BPI) or 40% (75BPI) at 10~40IPS

Error Rate :A<0.5% (read),=""><0.75%>

Weight :A580 g

Dimension (:mm) : 212(L) x 63(W) x 63(H)
