Opticon OPR2001
- 100 scans per second
- Low contrast scanning
- Auto trigger modus
- Ergonomic design

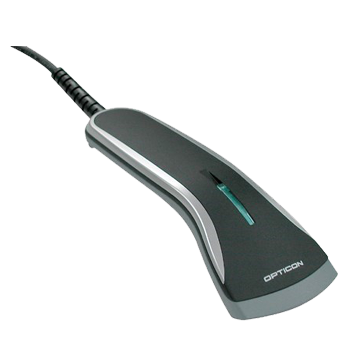

The OPR-2001 is a sleek, high speed laser scanner that looks stylish and modern on every counter or service desk. The ability to place this scanner on the stand on auto-trigger will free up your hands so they can be used elsewhere.
Operating indicators
Visual: 1 LED (red/green/orange) Non-visual: Buzzer
Communication
RS232: DB9 PTF connector with external power supply Keyboard Wedge:
MiniDIN6 F/M connector USB: Ver. 1.1, HID/VCP, USB-A connector
Power
Voltage requirement: 5V +- 10% (Keyboard Wedge and USB), 6V (min.
4.5, max. 6.5 V) (RS232) Current consumption: Max. 150mA
Durability
Temperature in operation: -5 to 50C / 23 to 122F Temperature in
storage: -20 to 60C / -4 to 140F Humidity in operation: 20 - 85%
(non-condensing) Humidity in storage: 10 - 90% (non-condensing)
Ambient light immunity: Fluorescent 3,000 lx max, Direct sun 50,000 lx
max, Incandescent 3,000 lx max Drop test: 1.5 m / 5 ft drop onto concrete
surface Vibration test: 10 - 100 Hz with 2G for 1 hour Protection rate:
IP 42
