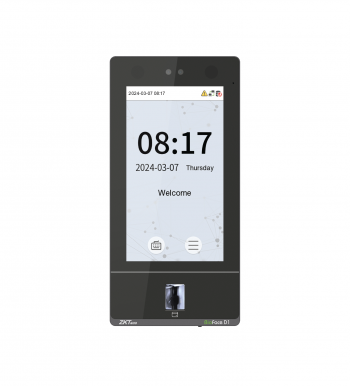

ZKTeco BioFace D1 in UAE
- Fast facial & fingerprint recognition under 0.5 sec with anti-spoofing protection.
- Cloud & protocol compatibility with AC push, TA push, and BEST protocol for full integration with BioTime Cloud and ZKTeco software.
The ZKTeco BioFace D1 is a SIP-ready multi-biometric access control terminal, integrating visible light facial recognition and in-glass fingerprint authentication for fast, accurate, and secure verification. IP65-rated for dust and water protection, it supports multiple authentication methods including face, fingerprint, RFID, and password. Featuring SIP-based HD video intercom and full compatibility with BioTime 9.5, ZKBio CVSecurity, and BioTime Cloud, BioFace D1 delivers seamless user management, AI-enhanced security, and advanced access control. Perfect for smart access solutions across Dubai and the Middle East.
Display screen : 7" TFT color touch LED, 600×1024 resolution
Camera : WDR binocular 1MP
Operating System : Linux
CPU / RAM / ROM : Dual Core 1GHz, 512MB RAM, 8GB ROM
Speaker & Microphone : 8Ω 1W speaker, omni-directional mic (-32dB)
Fingerprint Sensor : In-Glass Fingerprint (Z-ID)
Authentication Methods : Face / Fingerprint / Card / Password
Template Capacities : Fingerprint 10,000, Face 10,000, Card 50,000
User & Transaction Capacity : 50,000 users, 300,000 transactions
Biometric Speed : <0.5 sec="" (fingerprint),=""><0.35 sec="">
Touchless Facial Range : 30–200 cm
FAR / FRR : FAR ≤0.01% (Face), ≤0.0001% (Fingerprint); FRR ≤0.02% (Face), ≤0.01% (Fingerprint)
Biometric Algorithm : ZKFace V4.0, ZKFingerprint V13.0 (Standard)
Card Type : ID 125kHz / IC 13.56 MHz (Optional)
Communication : TCP/IP, RS485, Wiegand, Wi-Fi (Optional), USB, Aux Inputs, Electric Lock, Door Sensor, Exit Button
Standard Functions : ADMS, Photo Capture, Access Levels, Anti-Passback, Schedule Bell, SIP Client v2.0, ONVIF, AC & TA Push Protocols
Optional Functions : IC Card, Wi-Fi, Wireless Doorbell
Power Supply : DC 12V 3A (Optional)
Operating Temperature & Humidity : -5°C to 45°C, 10–90% RH
Dimensions & Weight : 238 × 115 × 22.3 mm, 0.622 kg
Supported Software & Apps : BioTime 9.5, BioTime Cloud, ZKBio CVSecurity, ZKBioTime App
Installation : Wall-mount, compatible with Asian Gang-box / Single Gang-Box
Ingress & Certifications : IP65, ISO14001, ISO9001, CE, FCC, RoHS
AI-powered facial & in-glass fingerprint recognition for fast, secure authentication
IP65-rated outdoor design for dustproof and waterproof durability
SIP HD video intercom with ONVIF support for seamless system integration
Cloud-ready with AC Push, TA Push, and BEST protocol for BioTime Cloud and ZKTeco software platforms
