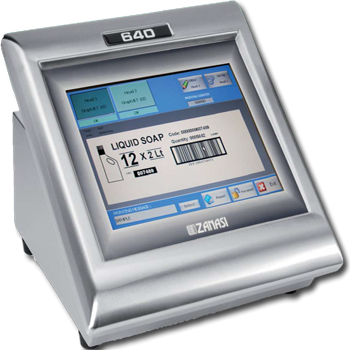

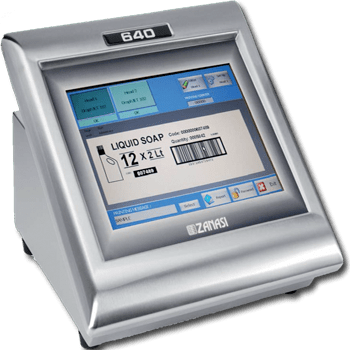

Zanasi Z640
- High Deinition industrial printing system
- Descriptive texts and logotypes
- Stainless Steel structure AISI 304 IP54 rating
Z640Plus 3.0 system is an exclusive high definition coder, provided with a stand-alone console which can drive simultaneously up to two printheads, for the full customization of primary and secondary packaging.
Print Head: Drives simultaneously up to 2 printheads either 102 mm (4) type (Graph e-JET 102) or 50 mm (2) type (Graph e-JET 50)
Line speed capability:up to 90 mt/min (295 ft/min)
Available fonts: Windows True Type
Message storage:up to 50 GB
Control Unit : Stainless Steel structure AISI 304 , IP54 rating, Printhead console distance: up to 5 mt (16,4 ft)
Print Head : Stainless steel structure AISI 304, Industrial Piezoelectric technology, Horizontal resolution up to 300 Dpi, Vertical resolution 192 Dpi, Stainless steel AISI 316 single orifice plate, Serviceable and replaceable nozzle group, Sideward (0 and 90) and upward printing with integrated or remote printhead, High contrast pigmented inks, Rapid dry and high adhesion inks, Integrated robust shock and vibration proof system, Innovative ink and printhead heater system, Dual ink feed improves flow rates for high printing speed and smooth ink delivery, Ink tank 5 gallons (optional), Dimensions Graph e-JET 102 printhead: 215 mm x 60 mm x 150 mm (8,5in x 2,4in x 5,9in), Dimensions Graph e-JET 50 printhead: 175 mm x 50 mm x 100 mm (6,9in x 2,0in x 3,9in).
General : Easy message creation with enhanced and powerful programming software, Simplified images and texts formatting with Stretch and Drag&Drop functions, Fast and reactive user interface with a 12,1 SVGA full colour touch-screen panel, Print parameters stored within each message, Report function for executed printing counter, verifiable via ethernet, Auto real-time printing cost calculation, Operator Multi ??? Level password access with Screen Lock protection, Communication to management programs and software, Fanless native 1GHz microprocessor with 1 GB RAM storage
Temperature : 5 to 45 C (40 -113 F)
Humidity : 0 ~ 90% (non-condensing)
Single Phase : 80-240Vac, 50-60Hz, 100VA
