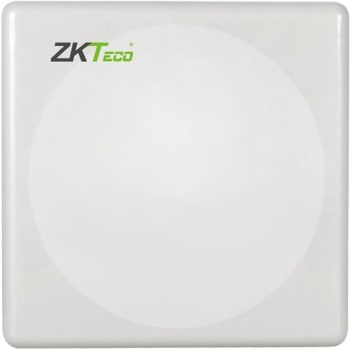

ZKTeco UHF reader
- RFID long-range proximity card reader
- Waterproof and suitable for a wide range of RFID applications
Read range up to 12 meters (adjustable), Read Sensitivity: Dual polarization
read mode, Two working mode: Trigger read & Always read, Weatherproof (IP66) .
Dimension : 260*260*65(mm) for UHF1-5E , 445*445*70(mm) for UHF1-10E
Reading distance : Up to 6 meters (adjustable) , Up to 12 meters (adjustable)
communication interface:Serial:RS-232Console,Wiegand 26(Default) /Wiegand 34
Frequency : 902Mhz 928Mhz, 865MHz , 868MHz
Shell Material : Antenna Panel:ABS Engineering Plastics; Back Cover:Aluminum Shell
Working Voltage : 9~16V DC
Working Temperature : -20 C - 55 C
Interface Protocol : EPC global UHF Class 1Gen 2/ISO 18000-6c
Multiple tags identification : <>
Multiple tags identification speed : >50 Per second
Working mode : Always read(Default) /Trigger read
I/O Interface : Supports external trigger
Maximum power consumption : <3w (rf="" output="" 26dbm,multiple="" tags),=""><2w (rf="" output="" 26dbm,sigle="">
