  • Smart phone and scan combination that runs on Windows mobile 6.5.3
  • 1D or 2D scanner
  • IP64

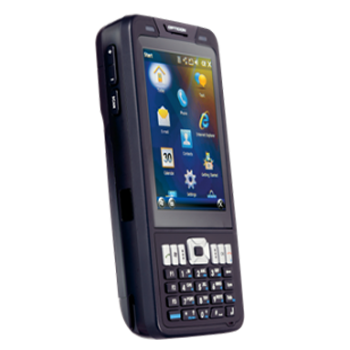

Smart phone and scanner combined, coming in various options consisting of the choice between a qwerty or numeric keypad and the option of a 1D or a 2D imager. Whenever you need a smart and sophisticated custom solution the H-22 is your scanner.

CPU: Marvell PXA320 806MHz O/S: MicrosoftA© Windows MobileA© 6.5.3

NAND Flash : 512 MB SDRAM: 256 MB Expansion: User accessible
microSD + HC

Type: Blanview TFT LCD, 262k color display with touch screen Size: 3.7�, 480
x 640 pixels Mode: Portrait / Landscape

Rechargeable battery: Lithium-Ion 3.7V 3060mAh Backup battery:
18mAh for main battery hotswap Charging method : Enclosed power
supply, separate car charging adapter, separate cradle

Temperature in operation: -10 to 50 C / 14 to 122 F Temperature
in storage : -30 to 80 C / -22 to 176 F (main battery storage: -20 to 60 C /
-4 to 140) Humidity in operation: up to 95% (non-condensing) Humidity
in storage : up to 95% (non-condensing) Drop test : 1.5 m / 5 ft drop onto
concrete surface Protection rate : IP 65

Dimensions (w x h x d): 151 x 75 x 25 mm / 5.94 x 2.95 x 0.98 in Weight
body: Ca. 340 g / 12 oz (incl. battery) Case : Black
