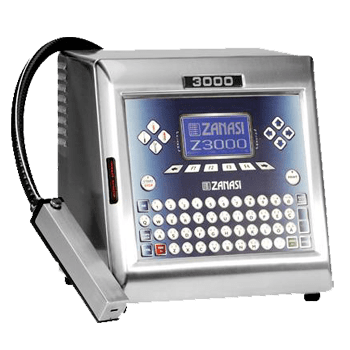

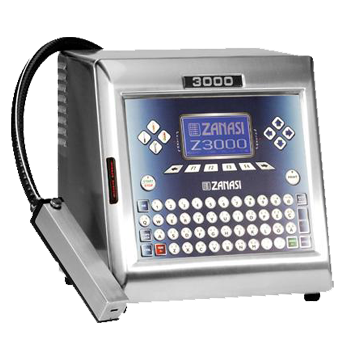

Zanasi Z3000
- Small Character industrial printing system
- New simplified hydraulic system for low solvent consumption
Z3000 is the entry level model of Zanasi Continuous Ink Jet (C.I.J.) printing systems. It is an easy to use coder ideally suited for all customers looking for a straight forward, simple and cost effective solution.
Lines : Up to 3
Characters height : from 0,8 to 12 mm (0,032inch to 0,47inch)
Line speed capability : up to 320 mt/min (1050 ft/min)
Print rate : up to 2136 ct/sec
Storage : 100 messages
Storage per message : Up to 250 characters
Font Matrix : 5x5, 7x5, 9x7 and 16x10
Bold factor : up to 8 times
Barcodes : 2/5 Industrial , UPC-A , CODE39 , EAN 13
Control Unit : Membrane keyboard solvent resistant, Blue WYSIWYG Display with high contrast 240??128 pixels, Stainless Steel structure AISI 304, IP53??rating, Conduit lenght: 2 mt (6,56 ft).
Print Head : Serviceable and replaceable, Hermetically sealed structure Automatic droplets diagnostic, Dimensions: 227mm x 42 mm x 49 mm (9,0in x 1,7in x 1,9in), Conduit inlet at 90 (optional), Internal Supply Positive Air Function, Micro Nozzle for high quality resolution print (optional)
General : Single START/STOP button, Automatic cleaning in Start/Stop procedures, Automatic Viscosity and Temperature control, New simplied ed hydraulic system for low solvent consumption, Printing parameters storage within each message, Operator Multi Level password access, Operator interface with foreign languages, Broad range of inks available (including MEK-free),
Temperature : from 5 to 45C (40 to 113F)
Humidity : 10 ~ 90% (non-condensing)
Single Phase : 85 240Vac, 50 60Hz, 200VA
