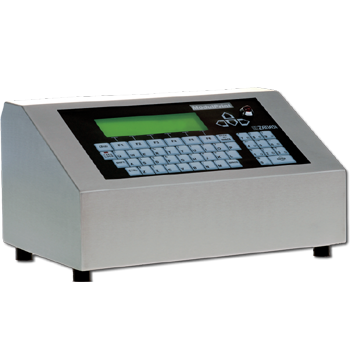

Zanasi ModuPrint specifications

Zanasi ModuPrint

  • Large Character industrial printing system
  • can print logos, alphanumerical texts, expiry dates, counters, etc.

ModulPrint is the proper choice for all applications with multiple production lines which have to be controlled from one console and when a number of lines have to be printed on various sides of a package

Modular management :AUp to 16 printheads

Characters heightA: 5 to 190 mm (0,2″-7,5″)

Line speed capabilityA: A180 mt/min (591 ft/min)

StorageA:A100 messages

Storage per messageA:AUp to 250 characters

Font MatrixA: 5?5, 7?5, 9?7, 16?10, 32?18

Control UnitA: Membrane keyboard solvent resistant, Backlit graphics WYSIWYG display, Stainless steel structure AISI 304, Printhead – console distance: up to 10 mt (33 ft).

Print HeadA: High speed solenoid technology, Rapid drying solvent based high adhesion inks, Stainless steel nozzle plate AISI 304, Stainless steel structure AISI 304, Dimensions printhead 7 dots: 230 mm x 80 mm x 45 mm (9,0″ x 3,1″ x 1,8″), Dimensions printhead 16 dots: 230 mm x 80 mm x 85 mm (9,0? x 3,1 mm x 3,3?), Dimensions printhead 32 dots: 230 mm x 80 mm x 154 mm (9,0? x 3,1? x 6,1?).

GeneralA: Ability to store the printing parameters in each message, Report function for executed printing counter, Operator password access, Operator interface with foreign languages.

TemperatureA: from 5A to 45AC (40A – 113AF)

HumidityA: 10 – 90% (non-condensing)

Single PhaseA: 85 – 240Vac, 50 – 60Hz, 200VA
