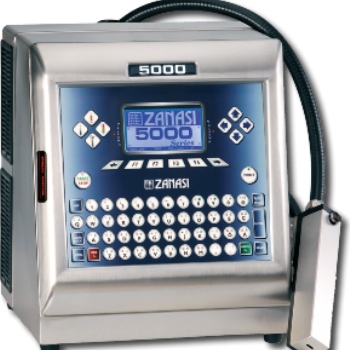

Zanasi Z5000
- Small Character industrial printing systems
- Micro Print Nozzle for high quality resolution print
Z5000 system offers an excellent printing quality thanks to the innovative 32 dots software. Combining the various available matrices, it???s possible to print up to 5 lines made up of alphanumeric characters. The 6 different languages which can be selected for the interface menu and the possibility to print Arabic, Cyrillic, Chinese and Korean characters guarantee the maximum flexibility.
Lines : Up to 5
Characters height : from 0.8 to 14 mm (0,032″ – 0,56″)
Line speed capability : up to 300 mt/min (984 ft/min)
Print rate : up to 2136 ct/sec
Storage : 250 messages
Storage per message : Up to 250 characters
Font Matrix : 5×5, 7×5, 9×7, 15×10, 16×10, 24×16 and 32×18
Bold factor : up to 8 times
Barcodes : 2/5 Industrial, UPC-A, CODE 39, EAN 13, CODE 128 (A,B,C), EAN 128 (A,B,C), 2D – Datamatrix, ITF (A,B,C)
Control Unit : Membrane keyboard solvent resistant, Blue WYSIWYG Display with high contrast 240×128 pixels, Stainless Steel structure AISI 304, Protection IP65, Conduit length: 4mt (13,1ft)
Print Head : Micro Print Nozzle for high quality resolution print (optional), Hermetically sealed printhead component, Auto-phasing of ink stream for consistent print quality, Dimensions: 227mm x 42 mm x 49 mm (9,0″ x 1,7″ x 1,9″), Conduit inlet at 90° (optional), Internal Supply Positive Air Function.
General : Single Start/Stop button, Automatic cleaning in both Start up and Shut down, Vapour recovery system for low make up consumption, Print parameters stored within each message, Keypad access with password, Operator selectable foreign language prompts, Report function for executed printing counter, Messages storage with 8 digits alphanumeric text
Temperature : from 5° to 45°C (40° – 113°F)
Humidity : 10 – 90% (non-condensing)
Single Phase : 85 – 240Vac, 50 – 60Hz, 200VA
