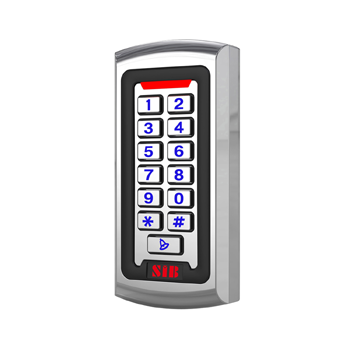

SIB S603
- Metal Standalone Keypad Access Control
- Waterproof IP68
Aluminum alloy case, anti-vandal case, Full programming from the keypad, Can be used as a standalone keypad, Adjustable Door Output time, Alarm time, Door Open time .
Operating Voltage: DC 12VA±10%
User Capacity : 2000
Card Type : EM,MF
Card Reading Distance : 3-6 cm
Active Current : <>
Idle Current : 25A±5mA
Lock Output Load : Max 3A
Alarm Output Load : Max 20A
Operating Temperature : -45C~60C
Operating Humidity : 10%- 90% RH
Environment : Conforms to IP68
Adjustable Door Relay time : 0 -99 seconds
Adjustable Alarm Time : 0- 3 minutes
Wiegand Interface : Wiegand 26 bits
Wiring Connections : Electric Lock, Exit Button, External Alarm & Reader
Dimensions : L123 x W58x H20 mm
