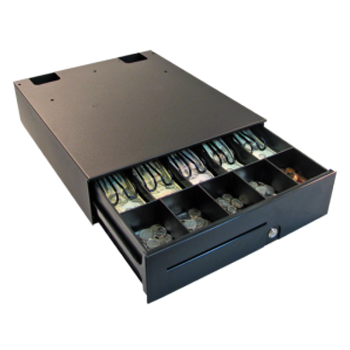

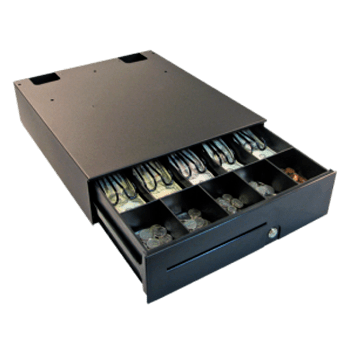

TYSSO Cash Drawer

Cash Drawer

  • Cash Drawer - ECH 410
  • Steel construction

Three position key, SPCC cold rolling steel plate shell and, SECC-N5 electroplating zinc under plate, Powder coating, Customized different kinds of Solenoid /Connectors available, Plastic, Metal, Wire Gripper available, Micro Switch available, 5 bill (fixed) and 8 coin (removable)

Dimensions : 410 W x 415 D x 100 H (mm, without Feet) , 16.1\"W x 16.3\"D x 3.9\"H (inch, without Feet)

Drawer : Metal cash drawer with heavy-duty ball bearing roller

Casing : Steel construction

Front Panel : Steel construction with painted front or stainless steel front (option)

Bill Tray : Metal bill clips ,??Adjustable dividers for up to 5 compartments (with 5 metal clips)

Coin Tray : Removable tray from the money case

Media slot : Front access slot for check, credit card receipt or any paper

Lockable Lid : Lockable Lid for the cash receiver to change tray (option)

Lock : 3-position Key Lock

Micro Switch Sensor : Open by driver signal to the solenoid (option)

I/O Interface : 12V, 24V for RJ11 / RJ12 Receipt Printer Interface , 9-Pin RS-232 Interface (option) , USB Interface (option)

Durability : 1,000, 000 operations

Color : Ivory , Black or Customization

Packaging : 465 W x 460 D x 150 H (mm)

Net Weight : 7.15 kgs
Gross Weight : 8.15 kgs
