Endless Data is the leading authorized distributor of ZKTeco time attendance and access control. Available in Dubai, UAE, Middle East, Kenya, Uganda, Tanzania, Ethiopia, Rwanda and Somalia
ZKteco KR600 series, RFID control Panel Reader C3-400 C3-200 , C3-100, Zkteco distributor in Middle East and Dubai

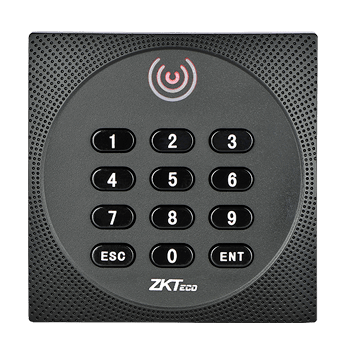

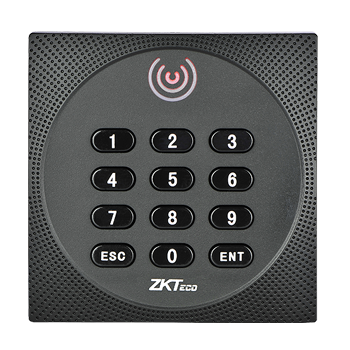

ZKTeco KR600

  • Wiegand Card Readers
  • 125kHz EM or 13.56MHz Mifare card reader


RFID/Mifare Card Readers , Can connect Via wiegand interface to Access control device or Control Panel


Read Range: KRxxx-E: Up to 10CM, KRxxx-M Up to 5CM

Reading Time:  â‰¤200ms

Input Port:  External LED  Control, External Buzzer Control

Output Port :  KRxxx-E: 26bit Wiegand (Default), KRxxx-M: 34bit Wiegand (Default)

Power/Current : DC 6-14V / Max.70mA

LED : Red and Green LEDs

Operating Temperature:  -10A°C to +65A°C

Material: ABS+PC with texture

Operating Humidity:  10% to 90% relative humidity, non-condensing

Beeper : Yes

Index of Protection: KR500-E/M: IP65, KR501-E/M: IP65, KR502-E/M: IP64, KR503-E/M: IP65

Standard Features: 125KHz RFID Card

Optional Features: 125KHz HID Prox Card, 13.56MHz MifareCard(S50 / S70),

13.56MHz HID Iclass Card

Communication : RS485
