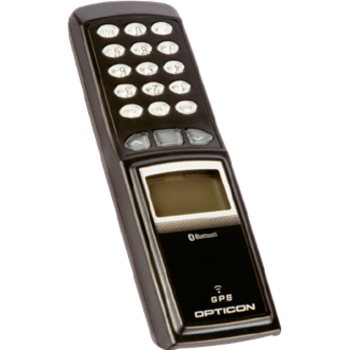

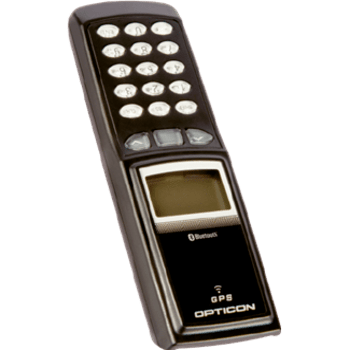

Opticon OPL9815
- barcode data collector with Bluetooth and GPS
- Comfortable single-hand scanning
- IP 54 with drop test 1.5 meter
The OPL-9815 is sealed up to IP 54 standards and withstands drops of 1.5 meter.Various cradles are available providing communication and charging options. The IrDA interface within the cradle allows data transfer when the scanner is inserted for charging. The multiple station cradle permits charging of up to 5 terminals simultaneously.
Operation
CPU: RX62N 32-bit MCU O/S: Proprietary Software: Programmable in
C-language. Ansi-C Cross compiler obtainable. Software development kit free
downloadable RTC: Supports year, month, day, hour, minute, second (leap
year supported)
Memory
FlashROM: 1 MB SRAM: 512 kB
Display
Type: Graphic LCD with backlight Size: 112 x 64 pixels
Operating indicators
Visual: 1 LED (red/green/orange) Non-visual: Buzzer
Communication
IrDA: Ver. 1.2, baudrate 2400 bps - 115.2 kbps Bluetooth: Ver. 2.1, class 2,
SPP and HID GPS: NMEA 0183, SiRF Star III, 4.8 kbps
Power
Rechargeable battery: Lithium-Ion 3.7V 1100mAh Backup battery:
Rechargeable manganese silicon lithium battery 3mAh Operating time: Ca.
50 hours (1 scan / 5 sec excl. connection), ca. 10 hours (1 scan / 5 sec incl.
GPS connection) Data retention time: Ca. 72 hours Charging method:
Separate cradle CRD972x series
Durability
Temperature in operation: 0 to 40 ??C / 32 to 104 ??F Temperature
in storage: -20 to 60 C / -4 to 140 F Humidity in operation: 20 -
85% (noncondensing) Humidity in storage: 20 - 90% (non-condensing)
Ambient light immunity: White 3,000 lx max, Fluorescent 3,000 lx max,
Direct sun 50,000 lx max Drop test: 1.5 m / 5 ft drop onto concret
