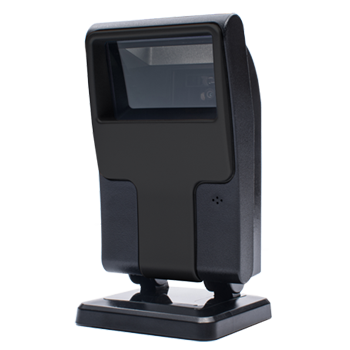

Futurex 2d 10F omni directional barcode reader orbit honeywell

FutureX 2D-10F

  • Read all 1D and 2D barcodes
  • Auto-sense function saves power for improve life time
  • Multi-interface solution
  • With LEDs and speaker for scanning confirmation

FutureX 2D 10F is an Omnidirectional presentation imager. It provides high performance 2D CMOS imager with elegant and durable design which makes it suitable for point-of-sale (POS) check-out applications, reading mobile phones in marketing promotion applications, manufacturing applications, medical industry and banking industry.


Optical System:752 H x 480 V pixels (Wide VGA)Light Source : Aiming Pattern: single dot, 625nm LED Illumination: 630nm LEDs Resolution :4 mil (Code 39), 7.5 mil (Data Matrix), 5 mil (PDF 417)Indicator : LEDs, Speaker


Voltage : DC 5VScanning Currents : <>


Operating temperature : : 0 C to 40 C (32 F to 104 F)Stroage temperature : -40 C to 70 C (-40 F to 158 F)??Operating humidity : 10% ~95% RH non-condensing 122 F / 50 CStorage humidity :10% ~85% RH non-condensing 158 F / 70 CShock resistance :1.5m drops


Interface : USB HID / RS-232 / USB-COM
