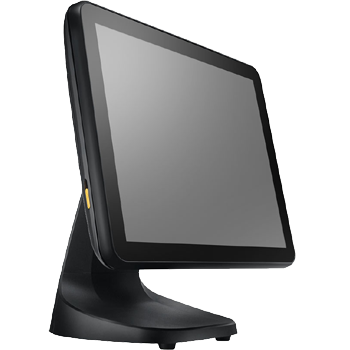

TYSSO TP2515
- Fanless POS System with Modular Mechanism
- Easy-Maintenance and Fashion Style
Easy-Maintenance, Noise-Free, and Reliability,Easy-Replacement Storage Drive Slot, Water Spill Proof Front Bezel, hard disk drive, MSR modular, Customer Display and 2nd LCD Display can swiftly install or replaced with little efforts.
CPU : Intel Bay Trail-D Platform, Celeron Processor J1900(2.0 GHz, 2M Cache, up to 2.42 GHz)
System Memory : 1 x DDR3L SO-DIMM Socket, up to 8GB
Graphic : Intel HD Graphics
OS Support : POS Ready 7, Windows 7, Windows 8.1, Windows 10 IOT Entry, Linux
Screen Size : 15 TFT LCD LED Backlight, (Ratio 4:3)
Resolution : 1024 x 768
Touch Screen : True-Flat Projective Capacitive Touch (10 point) ,True-Flat 5-wire Resistive Touch
Tilting Angle : 15 ~ 85 degree
HDD : 1 x 2.5 SATA II Bay HDD / SSD or m-SATA
Serial : 4x COM (DB9 with RI / +5VDC / +12VDC output by BIOS)
Parallel : 1 x DB25 Parallel Port (optional)
USB : 4 x USB type A (3 x USB 2.0 and 1 x USB 3.0)
LAN : 1 x RJ-45, Giga LAN Support (10 / 100 / 1000 Mbps)
VGA : 1 x DB-15, Female (Max Resolution: 1920 x 1080)
DC Out : 1 x +12VDC
DC In : 1 x +12VDC
Cash Drawer : 1 x RJ-11, +12VDC / +24VDC by jumper select
Power Adaptor : +12V/5A, 60W External Power Adaptor with Cable Head Lock, hide in stand (Power Adaptor: 100VAC ~ 240VAC, 50/60Hz)
Color : Black / White
Weight : 7.1 kg
Dimension (mm) : 356 (W) x 318 (H) x 207 (D) mm
Operating Temperature : 0C ~ 40C
Operating Humidity : 20% ~ 80% RH non-condensing
