Endless Data is the leading authorized distributor of ZKTeco time attendance and access control. Available in Dubai, UAE, Middle East, Kenya, Uganda, Tanzania, Ethiopia, Rwanda and Somalia

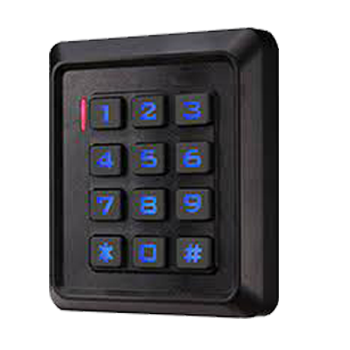

  • Standalone Keypad Access Control
  • Indoor use

Full programming from the keypad, Can be used as a standalone keypad, Backlight keys, Adjustable Door Output time, Alarm time, Door Open time, Easy to install and program, Red, Yellow and Green LEDS display the working status.

Operating Voltage : DC 12V 10%
User Capacity : 2000
Card Type : EM
Card Reading Distance : 5-8 cm
Active Current : <>
Idle Current : 25 5mA
Lock Output Load : Max 3A
Alarm Output Load : Max 20A
Operating Temperature : -45~60C
Operating Humidity : 10%- 90% RH
Adjustable Door Relay time : 0 -99 seconds
Adjustable Alarm Time : 0- 3 minutes
Wiring Connections : Electric Lock, Exit Button, External Alarm & Reader

WG Interface : WG26 bits
Dimensions : L92 x W81x H20 mm
