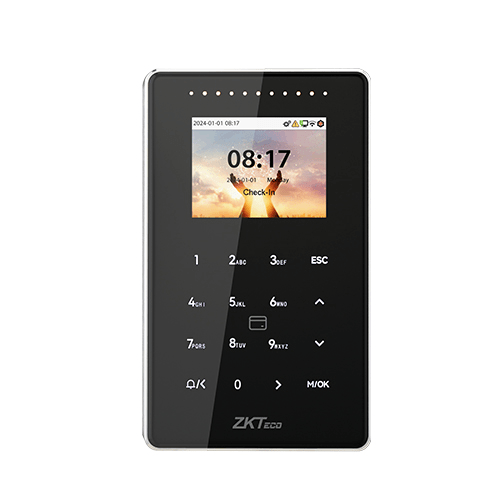

SC800 RFID Access Control Terminal front view with 2.4-inch color screen, hidden touch keypad, waterproof IP65 and vandal-proof IK04 design

ZKTeco SC800 in UAE

  • Fast and secure access with multi-frequency RFID and hidden touch keypad
  • Durable IP65 & IK04 design for outdoor applications

The SC800 is a Linux-based RFID access control terminal designed for durable outdoor performance with IP65 waterproof and IK04 vandal-resistant construction. It supports multi-frequency RFID, AES256 data security, and a hidden touch keypad for enhanced touchless access. With TCP/IP, RS485, Wiegand, OSDP, and optional Wi-Fi, it integrates seamlessly with ZKBioAccess IVS for enterprise-grade security. Supplied by Endless Data, it delivers advanced access control solutions to customers across the UAE, the Middle East, Africa, and global markets.

Card Capacity: 100,000

Record Capacity: 200,000

Display: 2.4-inch TFT LCD Color Screen

Operating System: Linux

Communication: TCP/IP, Wiegand In/Out, RS485, OSDP (Ver2.1.7), RS232 (Printer only), Wi-Fi (Optional)

Standard Functions: ID Card, Web Server, Automatic Status Switch, Self-Service Query, DST, 9-Digit User ID, Scheduled Bell, Anti-passback, HTTPS, AC Push to TA Push

Optional Functions: Multi-tech Card Module, Wi-Fi, Printer

Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell

Auxiliary Interface: 1 AUX Input

Keypad: Hidden Touch Keypad

Indication Light: Breathing Light (White), Status Light (Red/Green)

Power Supply: DC 12V 3A

Verification Speed: Fast Multi-Frequency RFID Matching

Operating Temperature: -10°C to 55°C (14°F to 131°F)

Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Operating Humidity: 10%–90% RH

Dimensions: 143 × 85 × 19.8 mm (Length × Width × Depth)

Net Weight: 0.70 kg

Data Protection: AES256 Encryption

Supported Software: ZKBio Access IVS

Applications & Use Cases

Use Case 1

Corporate Offices & Enterprises

ZKTeco SC800 provides secure employee access and attendance using multi-frequency RFID, hidden touch keypad, and fast verification for reliable workforce management.

Use Case 2

Industrial & Outdoor Facilities

ZKTeco SC800 features IP65 waterproof and IK04 vandal-proof design, ideal for factories, warehouses, and outdoor gates, ensuring durable and secure access control.

Use Case 3

Educational Institutions

ZKTeco SC800 enables accurate student and staff attendance tracking, multi-card type support, and centralized reporting for efficient campus management.

Use Case 4

Residential & Smart Buildings

ZKTeco SC800 integrates with electric locks, door sensors, exit buttons, and alarm systems, providing seamless access control and smart building automation.

Frequently Asked Questions

The SC800 is a robust RFID access control terminal with IP65 waterproof and IK04 vandal-proof design, featuring a 2.4-inch color screen, hidden touch keypad, and multi-frequency RFID support, ideal for outdoor use across the UAE, Middle East, Africa, and global markets.
The SC800 supports multiple card types including ID, IC, Legic, DESfire EV1/EV2, HID Prox, and HID iClass, providing flexible and secure access control for various environments.
The SC800 supports TCP/IP, Wiegand In/Out, RS485, OSDP (Ver2.1.7), RS232 (Printer only), and optional Wi-Fi, enabling seamless integration with security systems and centralized management.
Yes, the SC800 is fully compatible with ZKBio Access IVS, supporting AC push, TA push, and centralized access control across multiple locations for efficient management.
Endless Data offers comprehensive after-sales support including warranty services, firmware updates, installation guidance, troubleshooting assistance, and technical support for customers in the UAE, Middle East, Africa, and global markets.
The SC800 operates in temperatures from -10°C to 55°C and humidity levels of 10%–90% RH, making it reliable for both indoor and outdoor installations.
The SC800 provides fast and secure verification with multi-frequency RFID, ensuring quick access control and reducing queues during peak hours.
