KR500 series

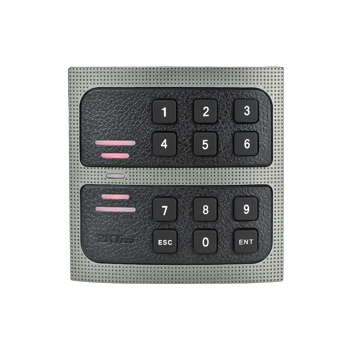

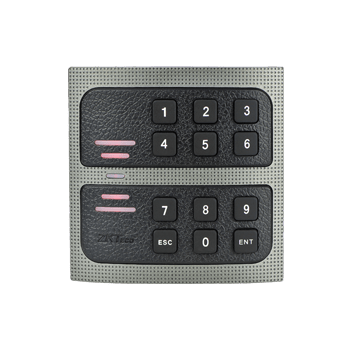

ZKTeco KR500

  • Wiegand Card Readers
  • 125kHz EM or 13.56MHz Mifare card reader

RFID/Mifare Card Readers , Can connect Via wiegand interface to Access control device or Control Panel

Read Range: KRxxx-E: Up to 10CM, KRxxx-M: Up to 5CM

Reading Time: <>

Input Port: External LED Control, External Buzzer Control

Output Format :KRxxx-E:26bit Wiegand (Default), KRxxx-M: 34bit Wiegand (Default)

Power/Current : DC 6-14V / Max.70mA

LED : Red and Green LEDs

Operating Temperature: -10 C to +65 C

Material: ABS+PC with texture

Operating Humidity: 10% to 90% relative humidity, non-condensing

Beeper : Yes

Index of Protection: KR500-E/M: IP65, KR501-E/M: IP65, KR502-E/M: IP64, KR503-E/M: IP65

Standard Features: 125KHz RFID Card

Optional Features: 125KHz HID Prox Card, 13.56MHz MifareCard(S50 / S70) 13.56MHz HIDI class Card

Communication : RS485
