Zkteco c3-100/200/400 - zkteco access control board

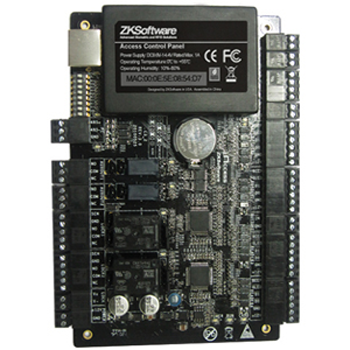

ZKTeco C3-400

  • IP-based Door Access Control Panel
  • Support full range of card readers

Supports any wiegand-output reader, including HID Prox,
iClass, and XceedID Multi-Technology, Come in 3 sizes to suit project??needs and reduce the cost of unused capacity 1-door, 2-door, and 4-door models ,Free SDK is available for integrators and OEMs.

Number of Doors Controlled: 1 Door , 2 Door , 4 Door.

Number of Readers Supported: 2,4,4 .

Types of Readers Supported: 26-bit Wiegand, others upon request .

Number of Inputs: 2 (Exit Device and Door Status) ,6 (2 Exit Device, 2 Door Status, 2 AUX),12 (4 Exit Device, 4 Door Status, 4 AUX)

Number of Outputs: Form C Relay for Aux Output) .

Card Holders Capacity: 30,000

Log Events Capacity: 100,000

Weight: 7.4lbs (3.35kg) , 7.5lbs (3.4kg) , 7.8lbs (3.55kg) .

Communication: TCP/IP, RS-485 and WiFi optional .

Enclosure: Powder Coated Aluminium .

Mounting: Wall Mount .

Recommended Power Supply: 12V DC, 1.5A .

Dimensions (Bundle Only): 15in.X3.15in.X11in.

Dimensions ( Board Only): 6.3in.X4.17in. (160mmX106mm) , 6.3in.X4.17in. (160mmX106mm) , 8.58in.X4.17in. (218mmX106mm)
