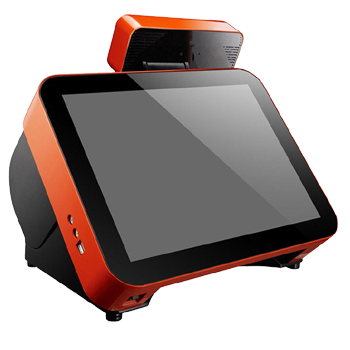

TYSSO POP950
- \n
- All-in-One Touch Screen POS System \n
- Bay Trail Celeron J1900 (2.0 GHz) \n
- Spill Proof Full-Flat Touch Screen LCD Monitor \n
The POP-950 is a multi-functional, fully integrated all-in-one POS system intended to meet the needs of different market segments. With the combination of POS terminal, 80mm thermal receipt printer and customer display, POP-950 is especially suitable for retail or hospitality services under confined space environments.
CPU : Intel® Bay Trail-D Platform, Celeron® Processor J1900
\nSystem Memory : 1 x DDR3L SO-DIMM 1333MHz, up to 8 GB
\nGraphic Memory : Intel® HD Graphics
\nOS Support : POS Ready 7, Linux, Windows 7
\nScreen Size : 15\" LCD Monitor
\nBrightness : 300 nits
\nResolution : 1024 x 768 Pixel
\nTouch Screen : 5 Wire Resistive Type
\nTilting Angle : Fixed 50 Degree
\nHDD : 1 x 2.5\" SATA
\nAuxiliary Storage : 1 x CFast Slot for SATA I / SATA II
\nSerial : 4 x COM (DB9, with COM 1/COM 2 power output, +5VDC/+12VDC, selectable by Jumper)
\nUSB : 1 x USB 3.0 (External), 4 x USB 2.0 (External, 2 x bottom / 2 x side)
\nPS/2 Mouse : 1 x PS/2 (for PS/2 Keyboard/Mouse)
\nLAN : 1 x RJ-45, Giga LAN Support
\nVGA : 1 x DB-15, Female
\nDC Out : 1 x 12VDC Jack for Customer Display or 2nd Display, 1 x 24VDC 3-pin Connector with Lock for Printer
\nCash Drawer : 1 x RJ-11, +12/+24 VDC
\nAudio Jack : 1 x Line Out, 1 x MIC In, 2 x Internal Speaker 2W
\nPower Input : 12VDC 90W, 4-pin Connector with Lock (External Adaptor: 100 ~ 240 VAC, 50/60HZ)
\nPower Input (Printer) : 24VDC/2.5A (with External Adapter 100 ~ 240VAC 50/60Hz)
\nColor : White, Black, Orange
\nWeight : 8.5 Kg
\nDimension (W x D x H: mm) : 374 (W) x 346 (D) x 280 (H)
\nOperating Temperature : 0°C ~ 40°C
\nOperating Humidity : 20% ~ 80% RH non-condensing
