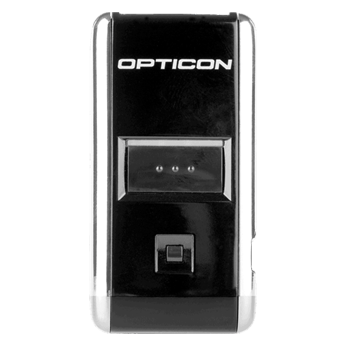

Opticon OPN2001
- Accurate 1D Barcode Scanner
- Small & Lightweight with Elegant Design
- Stores up to 15.000 barcodes
The OPN-2001 is simple, small and easy to take with you, taking scanning to another level of mobility. With only two buttons it is easy to use and after scanning all barcodes are quickly transferred through an included USB cable. When connected to transfer data the device is also charging ensuring the battery has power the next time you need it! OPN-2001, scanning at its purest.
Operation
CPU: ARM7 32-bit O/S: Proprietary RTC: Supports year, month, day, hour,
minute, second (leap year supported)
Memory
FlashROM: 512 kB (Data storage >15.000 barcodes + time stamp) RAM: 64
kB
Operating indicators
Visual: 1 LEDbar (red/green/orange) Non-visual: Buzzer
Communication
USB: Mini USB, Ver. 1.1, USB-VCP, (USB-HID on request)
Power
Rechargeable battery: Lithium-Ion 3.7V 150mAh Operating time
(active): 3.000 scans (1 scan / 5 sec) Operating time (idle): > 1 year
Charging method: Enclosed USB cable Battery charging time: Ca
2.5 hours
Durability
Temperature in operation: 0 to 40 ??C / 32 to 104 F Temperature in
storage: -20 to 60 C / -4 to 140 F Ambient light immunity: White
3,000 lx max, Fluorescent 3,000 lx max, Direct sun 50,000 lx max Drop test:
1.5 m / 5 ft drop onto concrete surface Vibration test: 10 - 100 Hz with 2G
for 30 min Protection rate: IP 42
