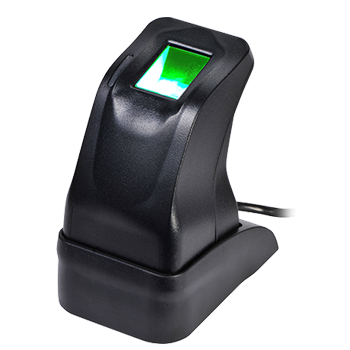

ZKTeco ZK4500

  • Stable and excellent fingerprint scanner
  • capture fingerprint image and upload to the PC by USB interface


High-performance, maintenance-free optical fingerprint sensor, It supports Windows 2000/XP/2003/Vista/7(32/64bit) and Linux OS, widely used in social insurance, public security, time attendance, fingerprint encryption, embedded system and other fields of application.


Material : Optical
CPU : 120MHz DSP
Flash :A16 KB
SoC : RTOS
Image Quality : 0.3 million pixels CMOS
Encrypted Fingerprint Data : NA
Sunlight Operation : White filed, General Sunlight
Water Splash : YES
Dry, Wet, or Rough Fingerprints :AGeneral Level
Power Consumption : 5V:200mA Scanning; 5V:90mA idle (waiting for finger)
Live Fingerprint Detection :ANO
LED : Green
Product Certifications : FCC, CE
Power Voltage : 5V (USB)
Power Current : 200mA
Communication : USB 2.0 / USB1.1 / USB1.0
Interface Socket : USB Type A
Image Resolution : 500 dpi
Effective Collecting Area : 13.24 * 15.7 mm
Collecting Area : 15.4*18 mm
Image Size :A280*360 pixel
Dimension : 65.5 * 48 * 79.8mm (L*W*H)
Image Format : BMP
Template : ZKFinger V10
Template Size : <2kb, (zkfinger="" v10.0);1568="" b="" (iso="">
Gray Level : 256
Weight : 0.25kg
Operating Environment : -20 AC ~ +50 AC; 90% r.h.
